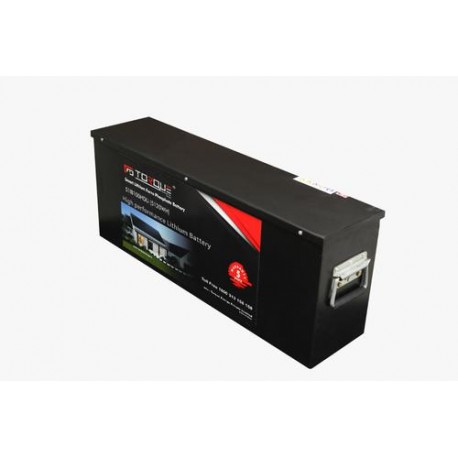

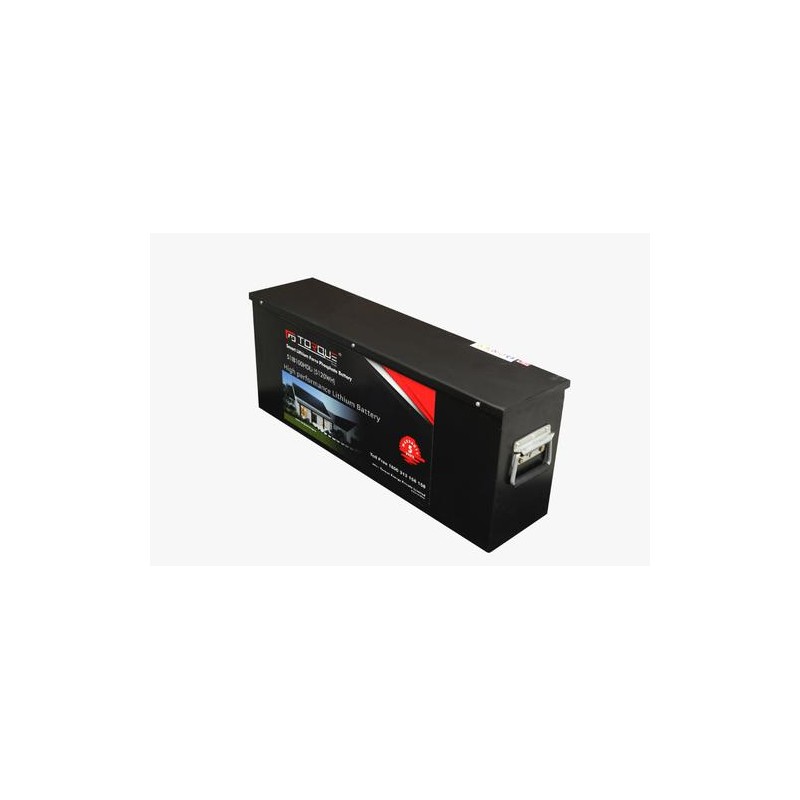

Torque Smart Lithium Ferro Phosphate Battery Pack (511Bl00HD Li)5120Wh)
New product
Smart Lithium Ferro Phosphate Battery:(511Bl00HD Li)5120Wh)
Equal Model in Lead Acid -150Ah in C10 (*4nos in Series)
* Voltage Protection.
* Short Circuit Protection.
* Temperature Protection.
* Active Balancing.
* Quick Cut-off Technology.
* Heat Resistant.
* Eco Friendly.
* 3x Faster Charging.
* Reduced Space.
* 50% higher Backup.
* 3000lifecycle.
* 5 Years Warranty.
5 Items
More info
| Pack Specification Model Name: (51IB100HDLi) - 5120Wh |
|||
| Item | Specification | Remarks | |
| Electrical | |||
| Module Configuration | 16S1P | - | |
| Installed Energy | 5120Wh | - | |
| Usable Energy | 4608Wh | @ 90% | |
| Nominal Voltage | 51 VDC | - | |
| Operating Voltage Range | 40 ~ 58.4 VDC | - | |
| Max. Charge Voltage | 58.4 VDC | - | |
| Balancing Voltage | 54.4 VDC | - | |
| Max. Charge Current | 50A | @ 0.5C | |
| Recommended Charge Current | 20A | @ 0.2C | |
| Peak Discharge Current | 200A | ≤ 2C | |
| Max Discharge Current | 100A | - | |
| Recommended Discharge Curent | 80A | - | |
| Mechanical | |||
| Dimension | |||
| Housing Material | MS Casing | ||
| Weight | |||
| IP Grade | IP 65 | - | |
| Charge/Discharge Terminal | SB- 175 | - | |
| Environment | |||
| Operating Temperature | Charging | 0 ~ 60℃ | - |
| Discharging | 20 ~ 55℃ | ||
| Storage Humidity | <60±25% RH | Non-condensing | |
| Storage Temperature | 1 Year | -20 ∼ 25℃ | SOC 50±5% |
| 6 Months | 25 ~ 35℃ | ||
| 3 Months | 35 ∼ 45℃ | ||
| <1 Week | 45 ∼ 60℃ | ||
| Expected Cycle & Calendar Life** | |||
| Cycle Life @ DoD 90% | ≥3,000 cycles | @ 25±3℃, 0.2C/1C | |
